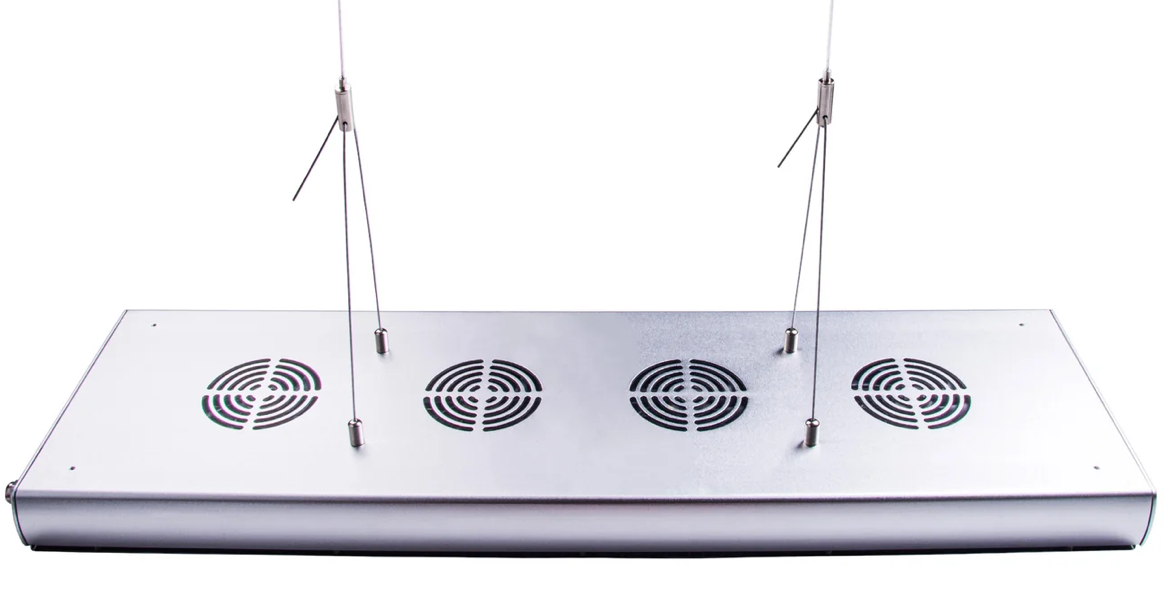

Orphek Natura iCon MAX 290W Reef Aquarium LED Light

Ships directly from our partner’s facility. Separate shipping is calculated at checkout, and it doesn’t qualify for TCR’s free-shipping offer.

Bring powerful, full-spectrum illumination to large and deep reef aquariums with the Orphek Natura iCon MAX. Engineered for demanding SPS and LPS systems, this premium 290-watt LED fixture combines wide coverage, strong depth penetration, smooth color blending, and advanced app-based control.

One Natura iCon MAX provides coverage for reef aquariums up to approximately 48 × 30 inches, making it an excellent solution for large displays, deep aquariums, coral grow-out systems, and serious reef keepers seeking powerful performance without installing multiple smaller fixtures.

Key Features

• Powerful 280–290W output
• Coverage up to approximately 48 × 30 inches
• Full 390–740 nm biological spectrum
• 156 mixed-color dual-chip LEDs with 312 individual LED chips
• Nine LED combinations producing 13 colors
• Six independently adjustable lighting channels
• Wi-Fi and Bluetooth connectivity
• Progressive dimming across every channel
• Helius coral growth and coloration program
• Acclimation, clouds, lunar, jellyfish, and custom programming modes
• Automatic sunrise, sunset, moonrise, and moonset synchronization
• Seasonal calendar controls for coral spawning applications
• Custom 90-degree reflectors for focused, even coverage
• Premium Mean Well HLG-320A-48A driver
• Corrosion-resistant anodized aluminum construction
• Waterproof connectors and power extension
• Steel hanging kit included

Powerful, Even Coverage

The Natura iCon MAX is designed to illuminate wide reef aquariums while maintaining usable PAR at depth. Its rectangular panel design and custom reflectors distribute light throughout the aquarium, helping reduce harsh hotspots, excessive light spill, and shadowing between coral colonies.

In manufacturer testing conducted across a 72-point grid, one fixture produced the following results at 24 inches from the light:

• Peak PAR: 515
• Center average: 470
• Full-grid average: 324
• Lowest measured reading: 160

PAR requirements vary based on aquarium dimensions, mounting height, aquascape, water clarity, coral placement, and selected lighting program. Begin at a reduced intensity and use the acclimation program when introducing this fixture to an established reef.

Full-Spectrum Coral Lighting

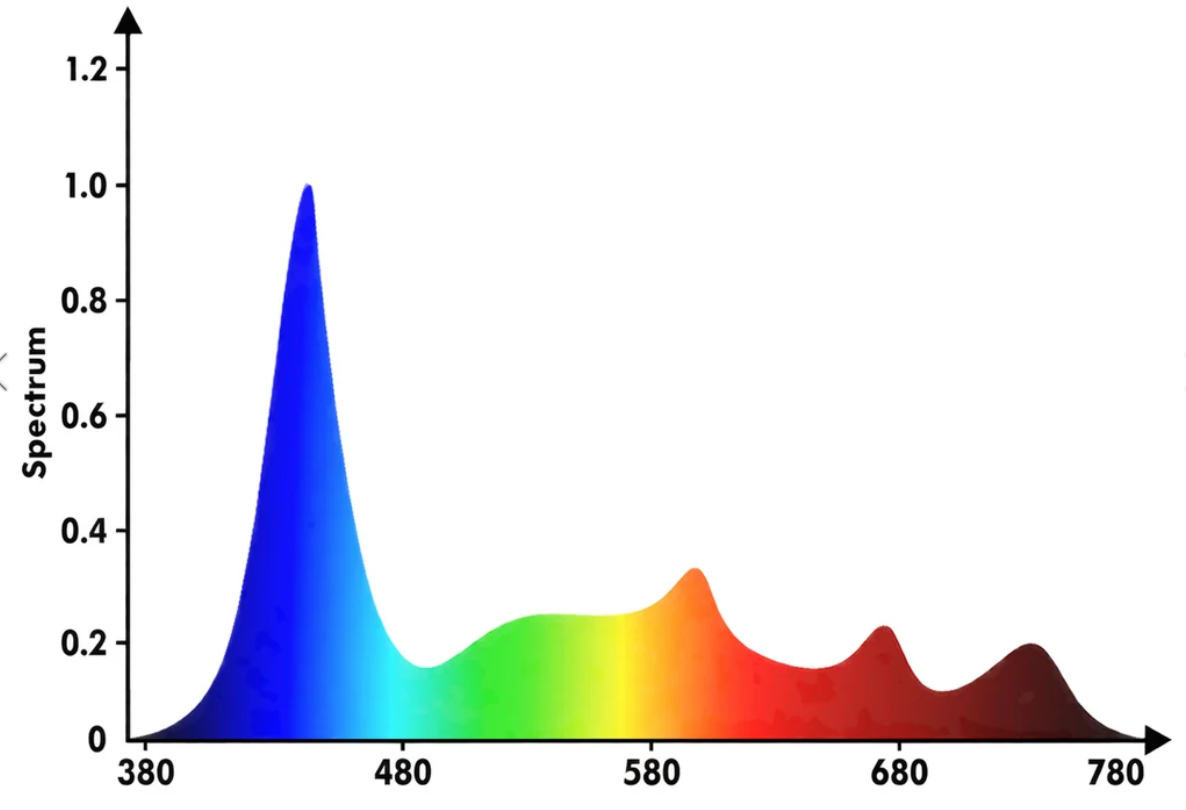

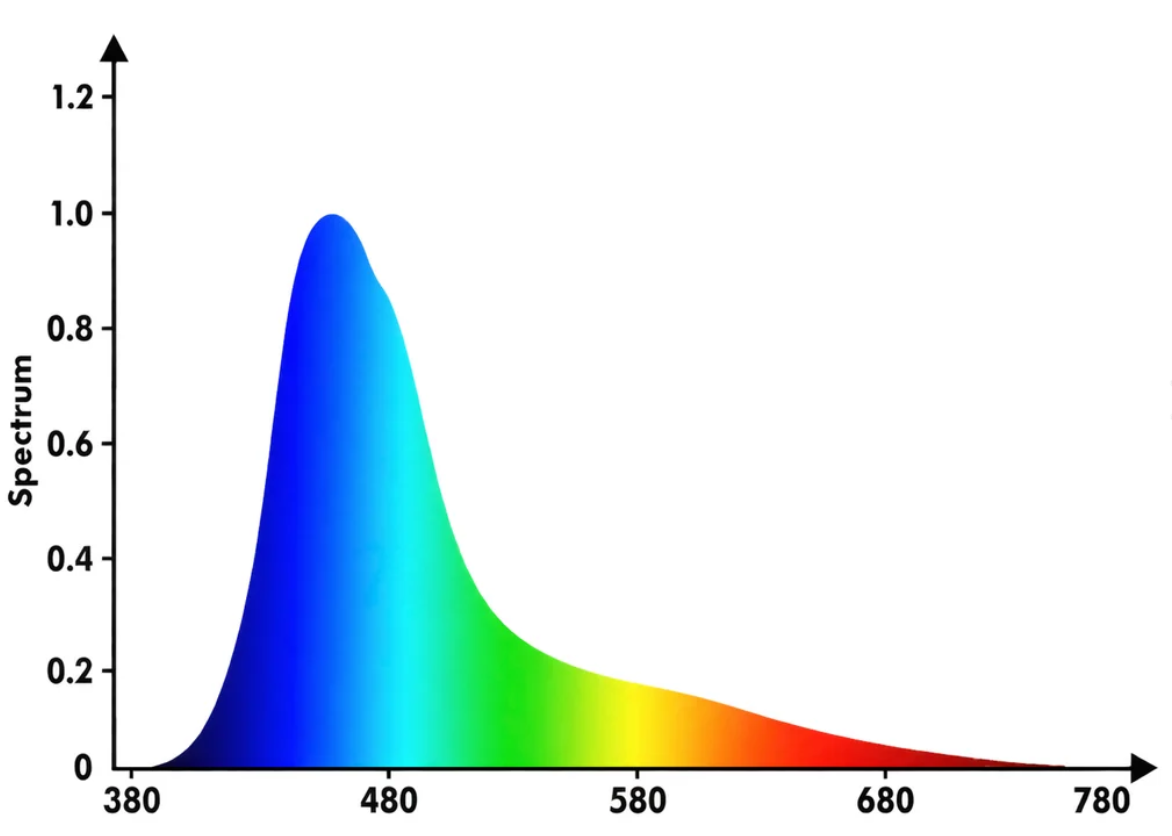

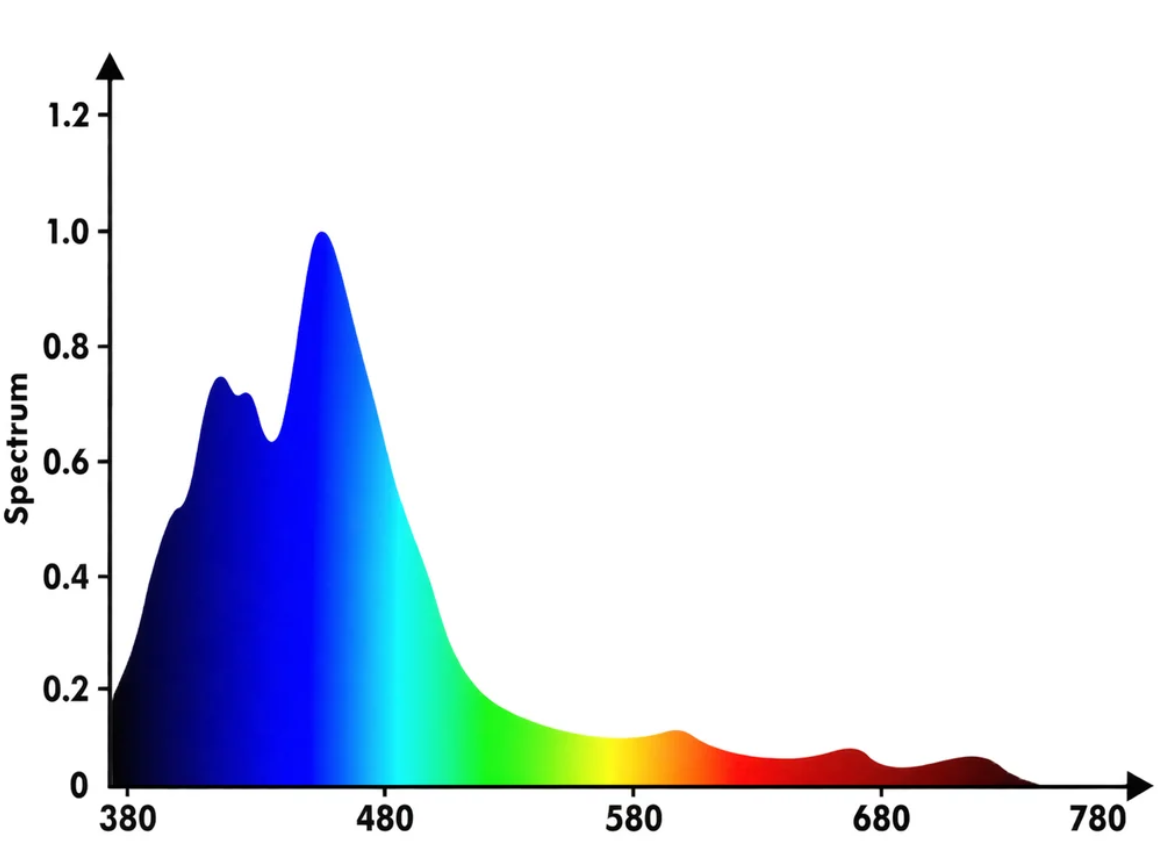

Orphek’s mixed-color dual-chip technology combines multiple wavelengths inside each LED package for smooth blending and broad spectral output. Its 390–740 nm spectrum includes UV-violet, violet, blue, ice blue, green, amber, and red wavelengths selected to support coral growth, coloration, fluorescence, and natural appearance.

The expanded blue spectrum combines:

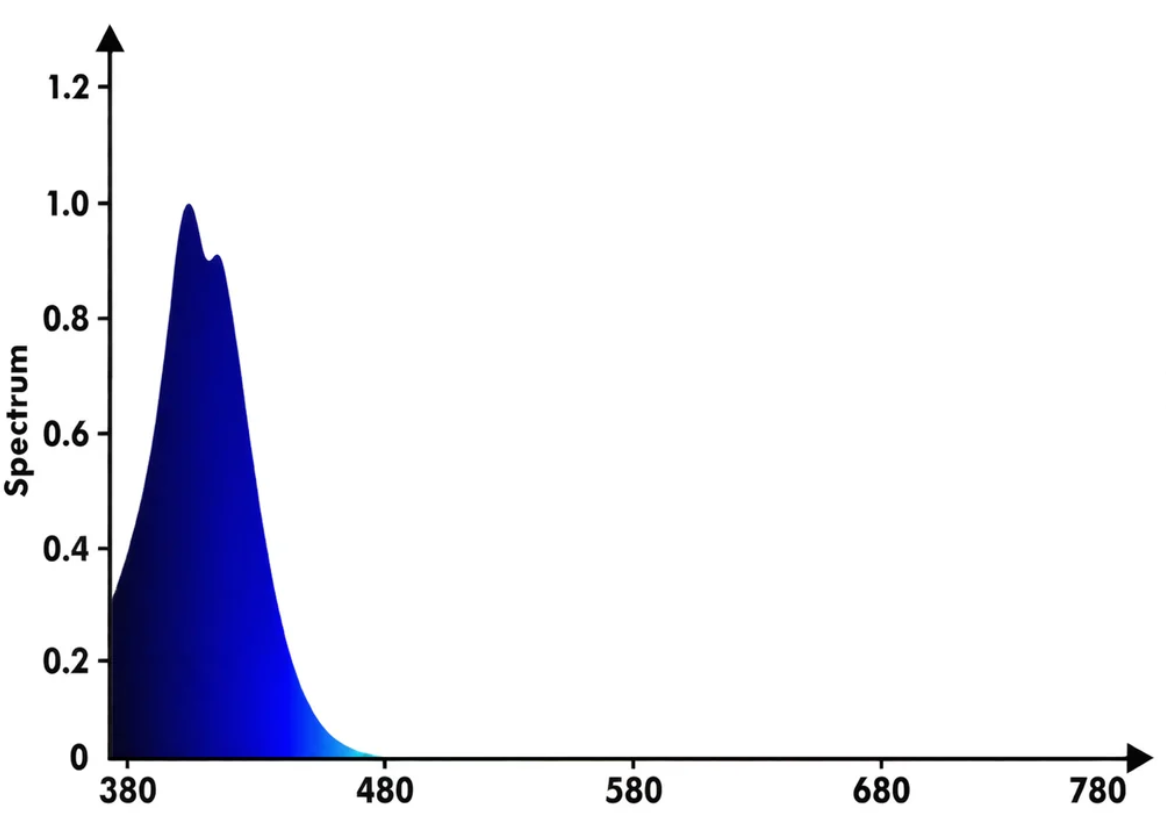

• UV/Violet: 390–415 nm

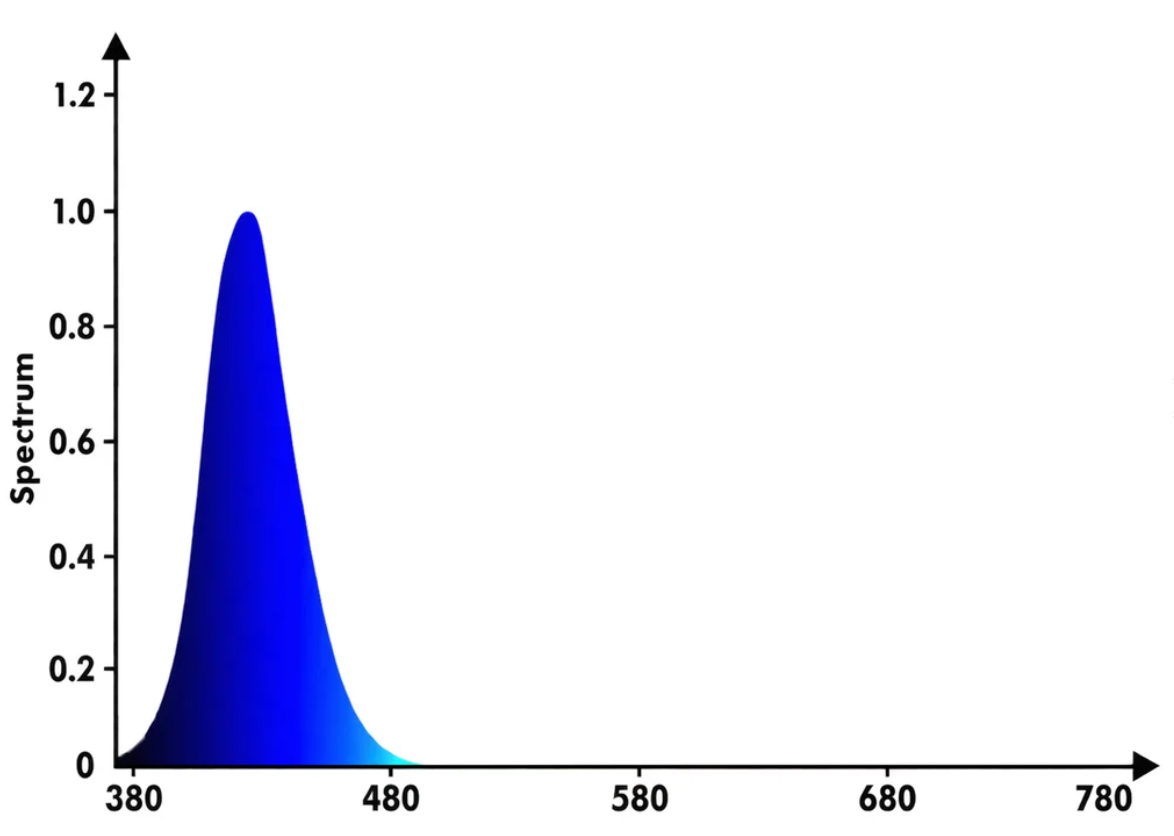

• Violet: 420–430 nm

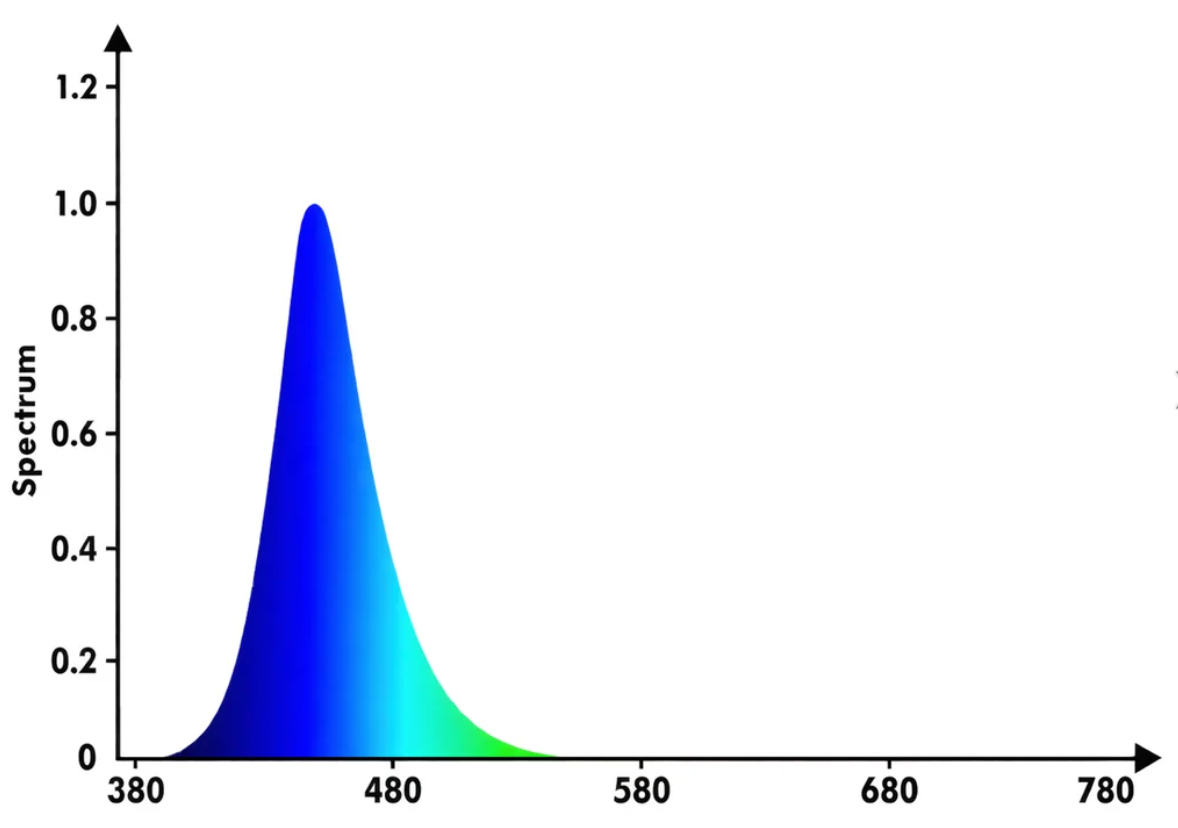

• Blue: 450–470 nm

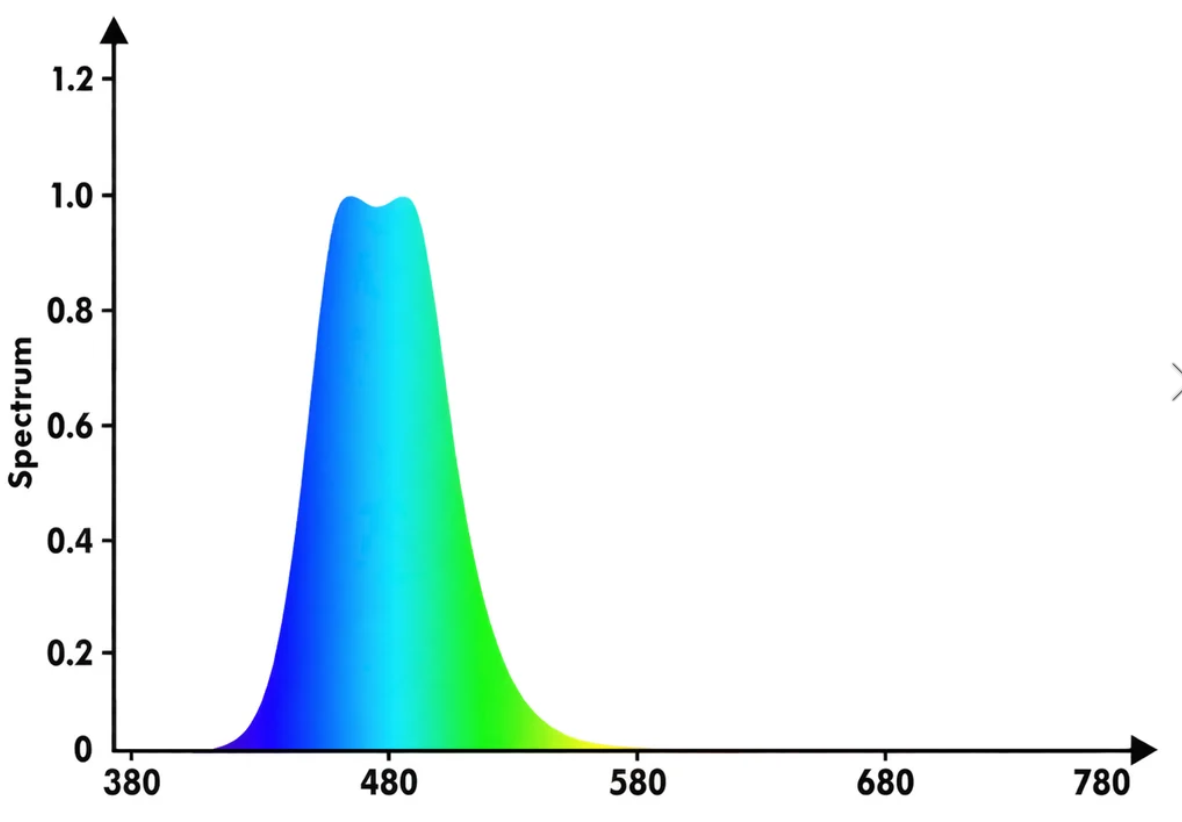

• Ice Blue: 470–480 nm

Intelligent iCon App Control

Control the Natura iCon MAX through the free Orphek iCon app for iOS and Android. Wi-Fi and Bluetooth connectivity provide access to individual channel control, custom schedules, preset programs, acclimation settings, and natural sun and moon synchronization.

Available control features include:

• Six-channel spectrum adjustment
• Helius growth and coloration program
• Automatic geolocation
• Sun and Moon Sync
• Lunar intensity limits from 0.01% to 1%
• Seasonal synchronization calendar
• Acclimation mode
• Cloud simulation
• Jellyfish mode
• Fully customized daily programs

Recommended Applications

• SPS-dominant reef aquariums
• Mixed SPS and LPS reef systems
• Large and deep reef displays
• Coral grow-out and propagation systems
• Coral spawning and research systems
• Public aquariums and private collections

Recommended mounting height is approximately 8 inches above the water. Final placement and intensity should be adjusted for the aquarium’s dimensions, livestock, and desired coverage.

Technical Specifications

• Power consumption: 280–290W
• Input voltage: 100–240V AC
• Frequency: 50–60Hz
• Output: 48V DC
• Power factor: 0.973
• Fixture dimensions: 26.77 × 8.27 × 1.81 inches
• Fixture weight: 13.89 pounds
• Power-supply weight: 3.97 pounds
• Light-to-power-supply extension: 118 inches
• Power cord: 59 inches
• Recommended coverage: Up to approximately 48 × 30 inches
• Recommended mounting height: Approximately 8 inches

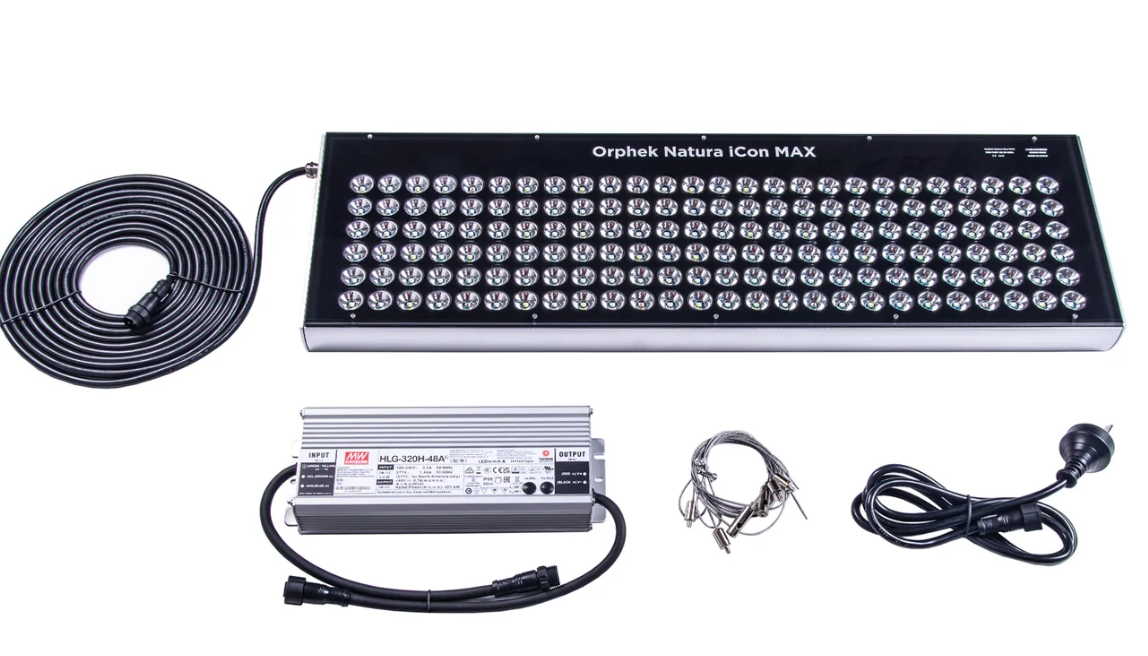

What’s Included

• Orphek Natura iCon MAX LED fixture
• Mean Well HLG-320A-48A power supply
• Waterproof connectors
• Waterproof power extension cable
• Region-appropriate power cord
• Steel hanging cables and installation hardware
