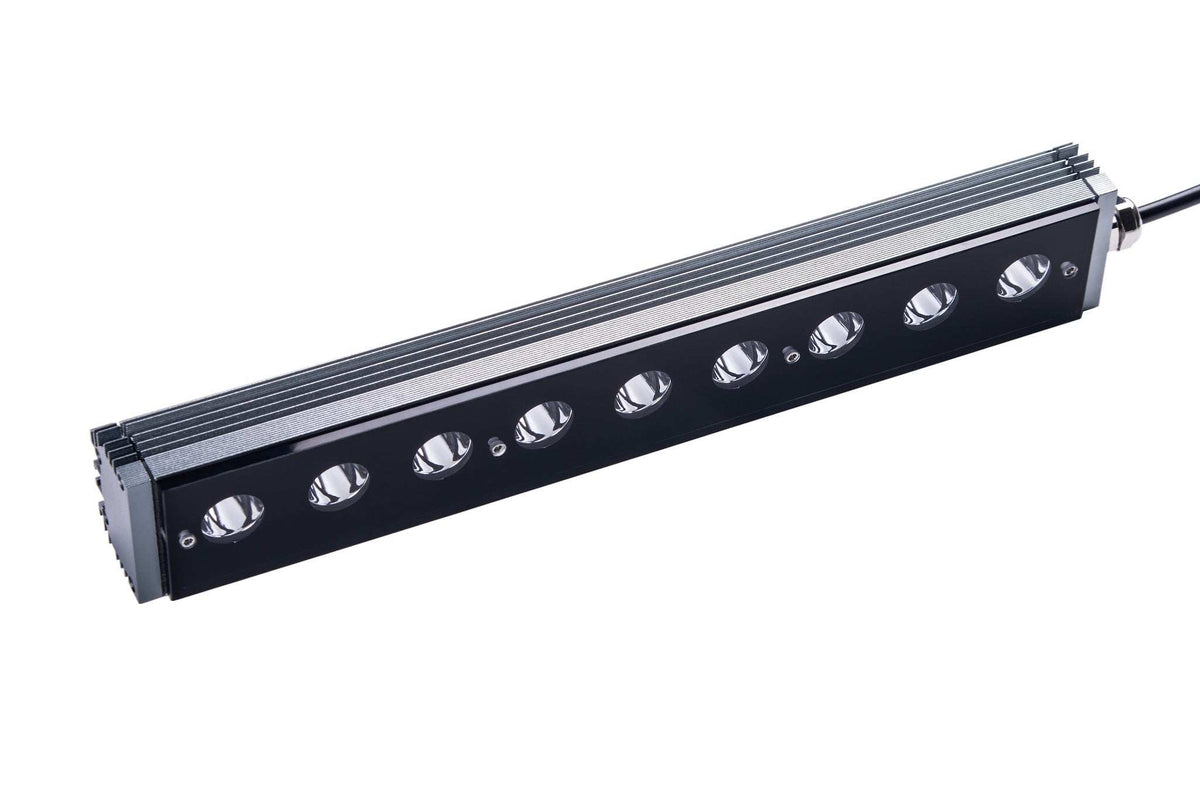

Orphek OR4 iCon Blue Plus Reef Aquarium LED Bar

$159.99 USD

~~$199.99 USD~~ $159.99 USD

Sale Sold out

Shipping calculated at checkout.

Size 12in / 30cm 24in / 60cm 36in / 90cm 48in / 120cm 60in / 150cm

Enhance coral fluorescence, coloration and visual depth with the Orphek OR4 iCon Blue Plus Reef Aquarium LED Bar.

The OR4 iCon Blue Plus uses Orphek’s mixed-color dual-chip LED technology to produce a powerful blue and violet spectrum ranging from approximately 390–480 nm. It can be used as a supplemental light alongside the Natura iCon, Atlantik iCon or other reef lighting systems, or combined with additional OR4 bars to create a customized lighting configuration.

Available in five lengths from 12 to 60 inches.

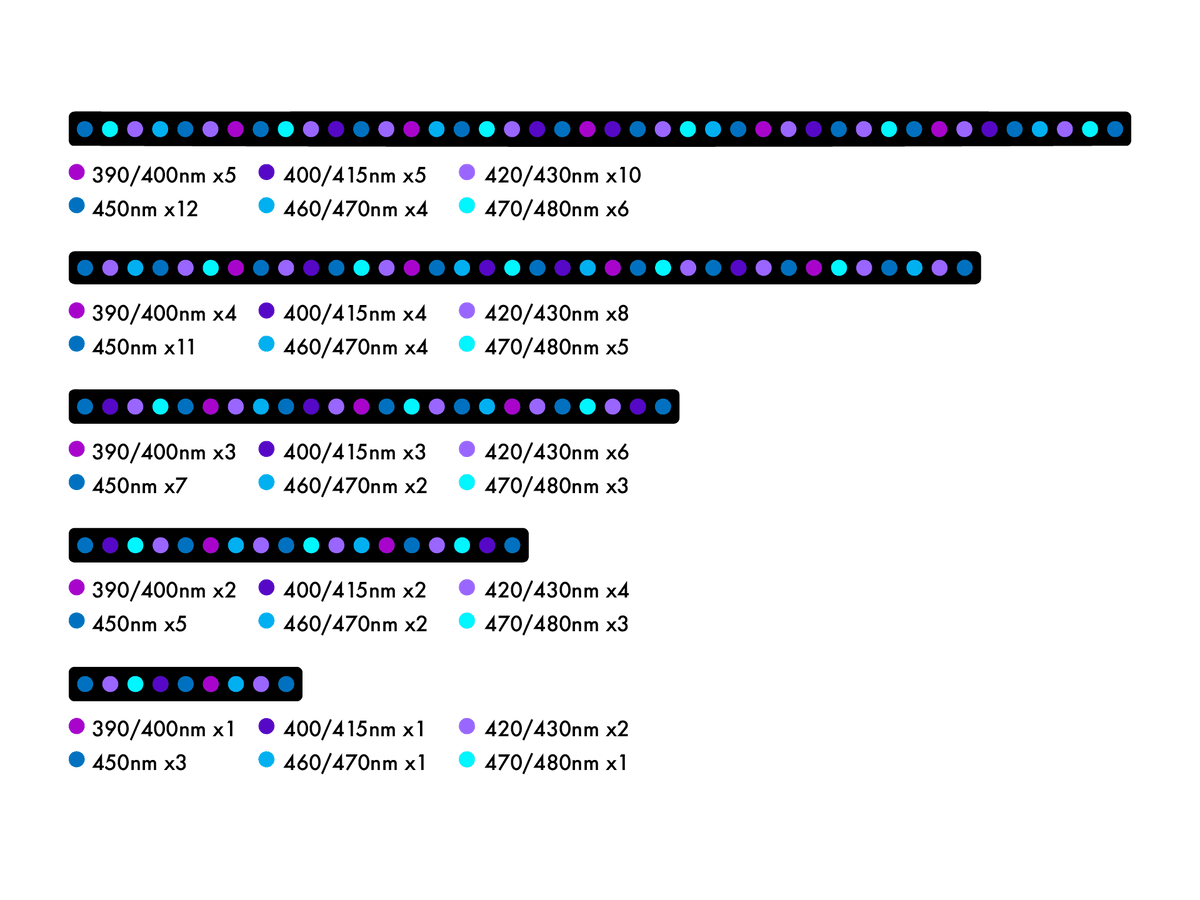

Blue Plus Spectrum

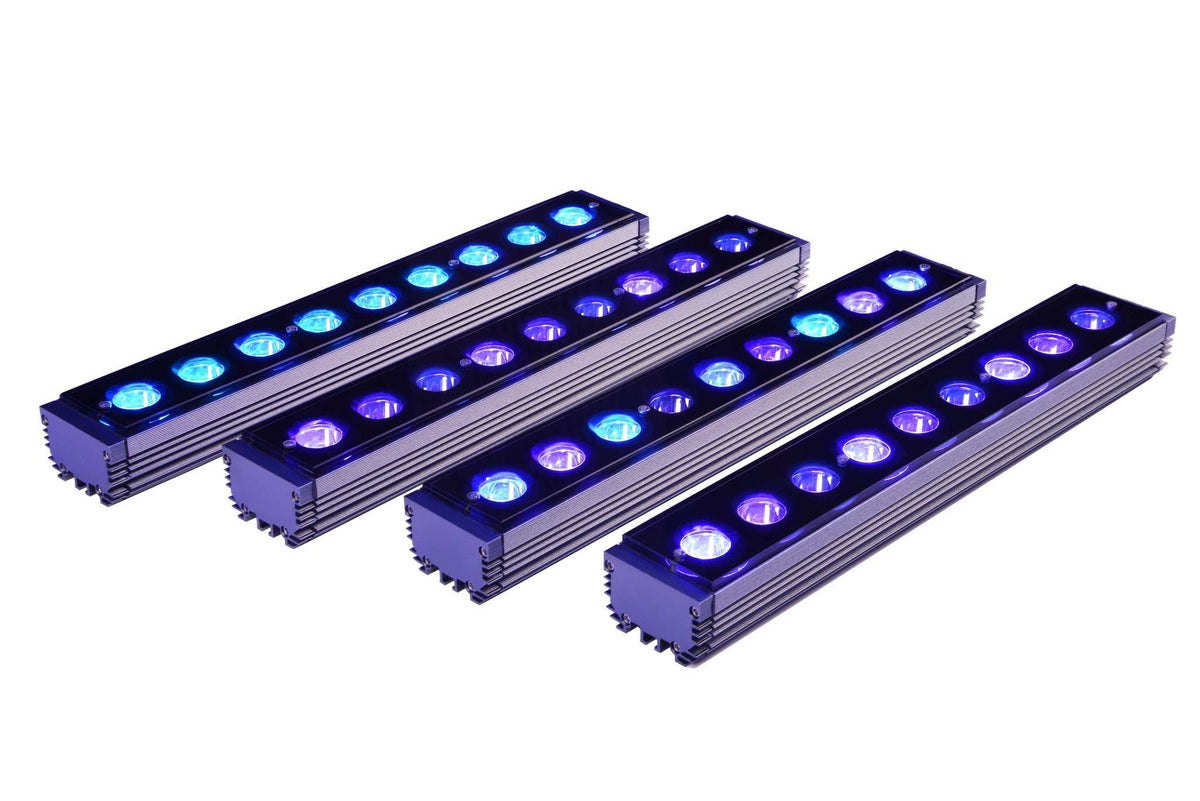

All Orphek OR4 LED Bars

The Blue Plus spectrum combines violet, royal blue, blue and cyan wavelengths to enhance coral fluorescence and bring out colors that can appear muted under traditional white lighting.

It is ideal for:

Increasing coral fluorescence and color pop
Supplementing full-spectrum reef lights
Supporting SPS, LPS, soft coral and mixed reef systems
Adding blue and violet wavelengths to existing lighting
Creating dawn, dusk and evening viewing periods
Building a multi-bar custom reef lighting system

Intelligent iCon Control

The OR4 generation includes Orphek iCon connectivity for programmable control and dimming through the Orphek iCon app.

Control features include:

Wi-Fi and Bluetooth connectivity
Programmable lighting schedules
Adjustable intensity
Sunrise and sunset transitions
Sun and Moon Synchronization
Integration with compatible Orphek iCon lighting
iOS and Android app compatibility

Available Sizes

OR4 30

Nominal Length: 12 Inches / 30 cm
Actual Fixture Length: 13.2 Inches
Power Consumption: 15 Watts
Gross Package Weight: Approximately 3.53 Pounds

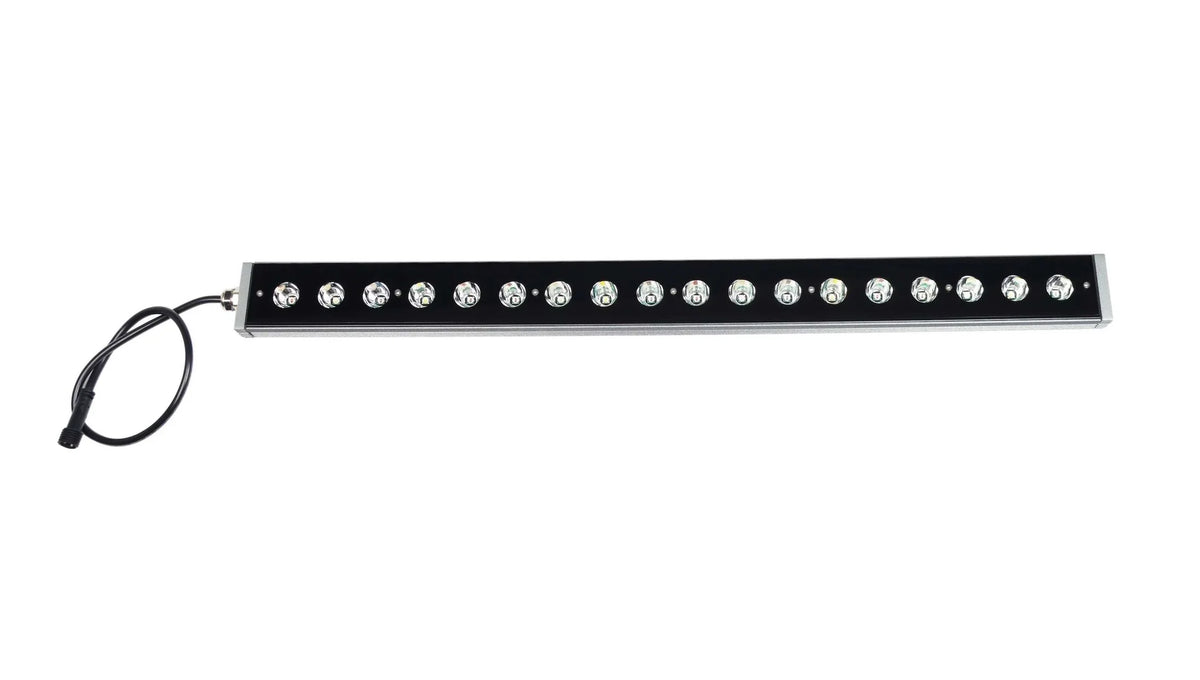

OR4 60

Nominal Length: 24 Inches / 60 cm
Actual Fixture Length: 25 Inches
Power Consumption: 30 Watts
Gross Package Weight: Approximately 5.07 Pounds

OR4 90

Nominal Length: 36 Inches / 90 cm
Actual Fixture Length: 36.8 Inches
Power Consumption: 40 Watts
Gross Package Weight: Approximately 6.39 Pounds

OR4 120

Nominal Length: 48 Inches / 120 cm
Actual Fixture Length: 48.7 Inches
Power Consumption: 60 Watts
Gross Package Weight: Approximately 7.72 Pounds

OR4 150

Nominal Length: 60 Inches / 150 cm
Actual Fixture Length: 60.4 Inches
Power Consumption: 75 Watts
Gross Package Weight: Approximately 9.04 Pounds

All fixtures measure approximately 1.97 inches wide and 1.4 inches high.

Power and Electrical Information

Input Voltage: 100–230V AC
Frequency: 50–60 Hz
Power Factor: Greater Than 95%
Output Cable Length: Approximately 39.37 Inches
Input Power-Cord Length: Approximately 46.46 Inches

A region-appropriate power connection is supplied.

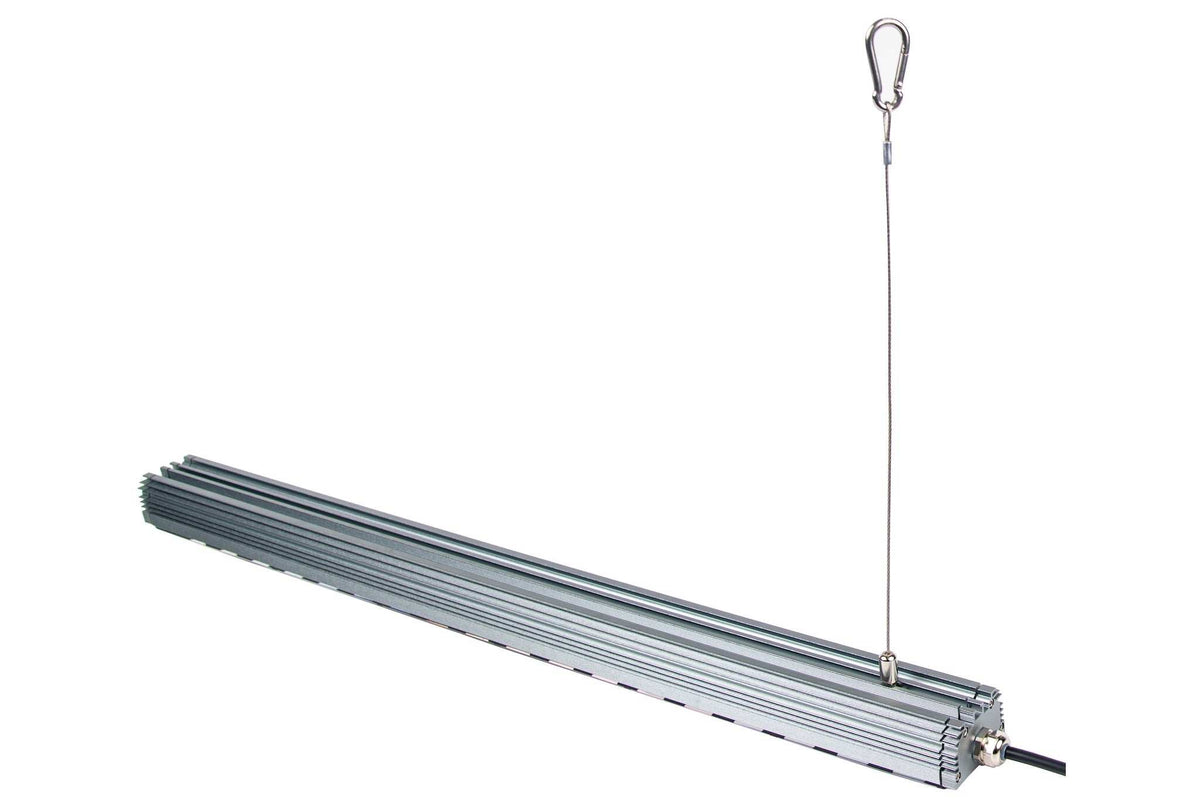

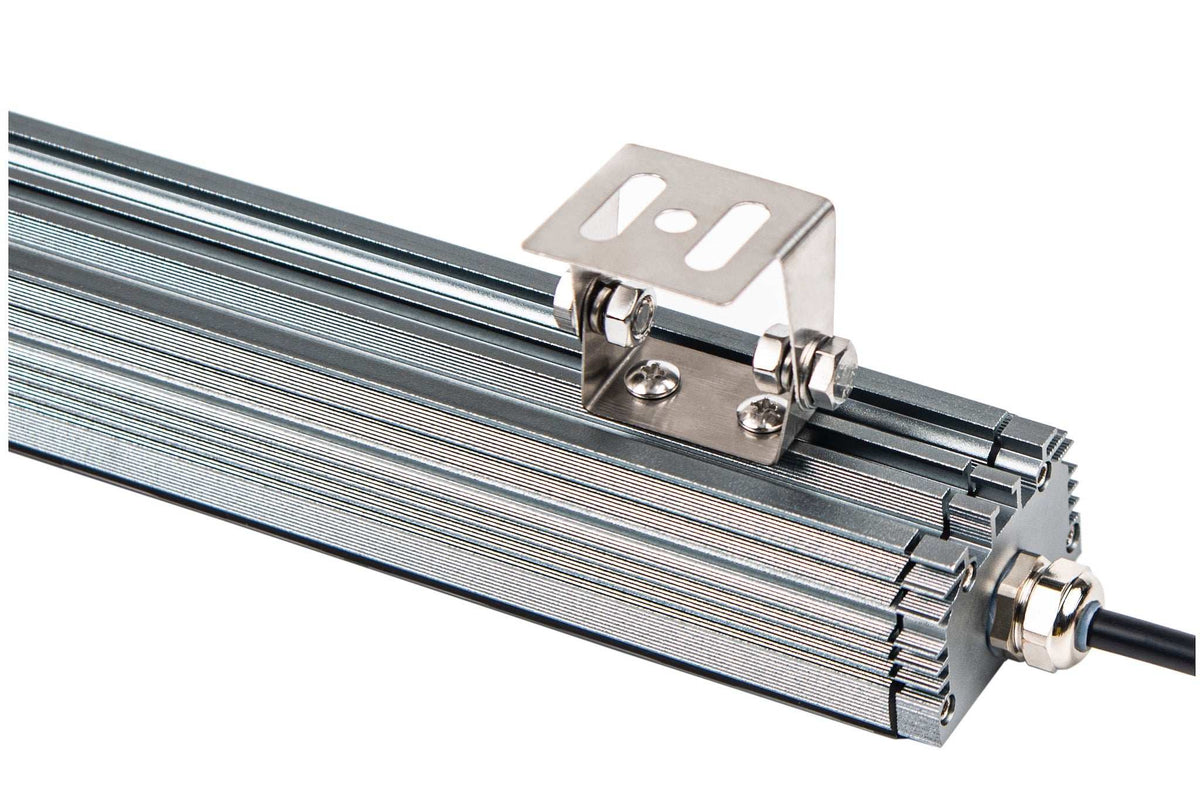

Mounting Information

The OR4 iCon Blue Plus can be installed using compatible Orphek hanging and mounting accessories.

Mounting brackets, hanging kits and additional mounting hardware may be sold separately. Review the included components for your selected size before installation.

Selecting the Correct Size

Choose a bar that closely matches the illuminated length of your aquarium. Multiple OR4 bars may be combined for wider coverage, stronger intensity or a customized spectrum.

Lighting requirements vary depending on aquarium dimensions, mounting height, coral placement, aquascape and the output of your existing fixtures. Contact us before ordering if you need help selecting the correct size or number of bars.
